Virus Counter
Virocyt 2100
Compact and easy-to-use laboratory instrument and assay. The Virocyt 2100 virus counter rapidly provides a direct measurement of total virus particle concentration.
Analysis + Exploration
circuitry must be enclosed
established base (footprint)
highest point
1. A flat top invites using the surface as a repository for other objects
2. The reagent lid needs to be removable for access/viewing
3. Hard corners detract from a high-tech value; containing negative space requires more material
reagents must be accessible

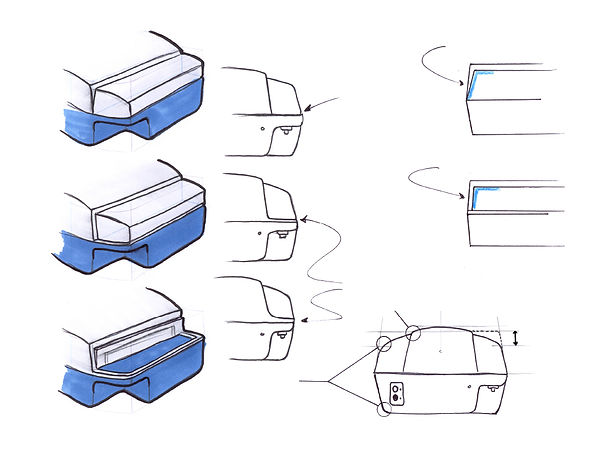

curved top
no lip (flush)
parallel draft angle
requires small lip for offset
diverging draft angle
transparent reagent cover - hinged
opaque reagent cover
transparent reagen cover - snap-on
non-removable sampling mechanism protector
remobable sampling mechansim protector
The Virocyt 2100 Virus Counter design evolved. It uses the same base with a different lid selection.
It's now the Virocyt Virus Counter 3100.
Analysis + Exploration
Prototype + Product
